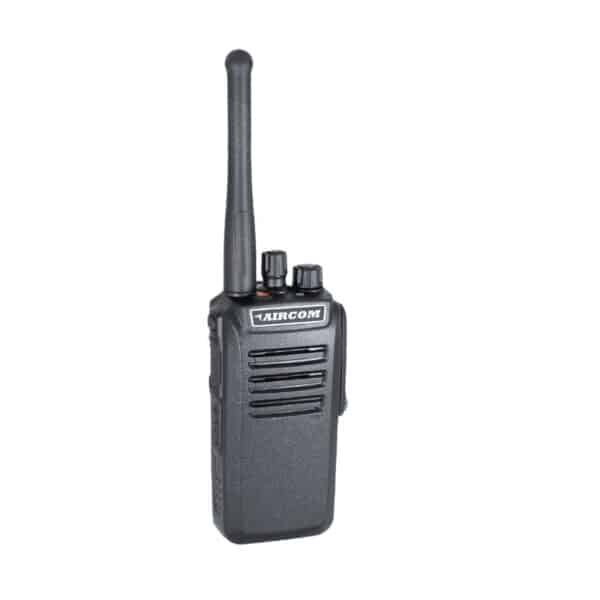

AEX8802 Explosion Proof Two Way Radio
- VHF Helical Antenna is compatible with the supplied Walkie-Talkie set.
- 2500 mAh Li-Ion Battery or Higher
- Long lasting battery backup.
- Highly explosion proof radio gives extra security.
- Nonstop communication without network interruption.
- Included belt clip ato attach radio to belt strongly.
- Comes in charger base (AC Adaptor)
- Radio housing meets IP57 or higher specifications; submersible in 1 meter of water up to 30 minutes.
Technical Specifications
| General | Frequency range:136-174 MHz |
| Channel Capacity: 16 | |
| Channel spacing:12.5 KHz | |
| Power Supply: 7.4 V DC ± 10%. | |
| Frequency Stability (-30° to +60° C): ± 0.5 -2.5 ppm | |
| Communication Coverage range: Suburban Area: Minimum: 3± km., Flat Open Terrain: Minimum: 5± km. | |
| Transmitter | High Power Output: 5 Watts (VHF) |
| Modulation Limiting:± 2.5 kHz @ 12.5 kHz, ± 5 kHz @ 25 kHz | |
| FM Hum and Noise: 40dB @12.5kHz, 45dB @20/25kHz. | |
| Audio Distortion: ≈ 3% (Typical) | |
| Receiver
|
Analogue Sensitivity (at @12 dB SINAD) : 0.16 uV – 0.30 uV |
| Digital Sensitivity (5% BER): 0.14uV-0.28 uV | |
| Adjacent Channel Selectivity: 45-60 dB @ 12.5kHz, 70 dB @ 20/25 kHz | |
| Inter-modulation: 60-70 dB
Spurious Rejection: 70 dB |
|
| Hum and Noise: 45dB @ 20/25kHz, 40dB @ 12.5kHz. | |
| Rated Audio: 500mW-700 mW | |
| Antenna: | VHF Helical Antenna is compatible with the supplied Walkie-Talkie set. |
| Battery | 2200-2500 mAh Li-Ion Battery or Higher |
| Carry Solutions | Belt Clip |
| Battery Charger | Charger Base (AC Adaptor) |
| Additional Features | Radio housing meets IP57 or higher specifications; submersible in 1 meter of water for up to 30 minutes. |
