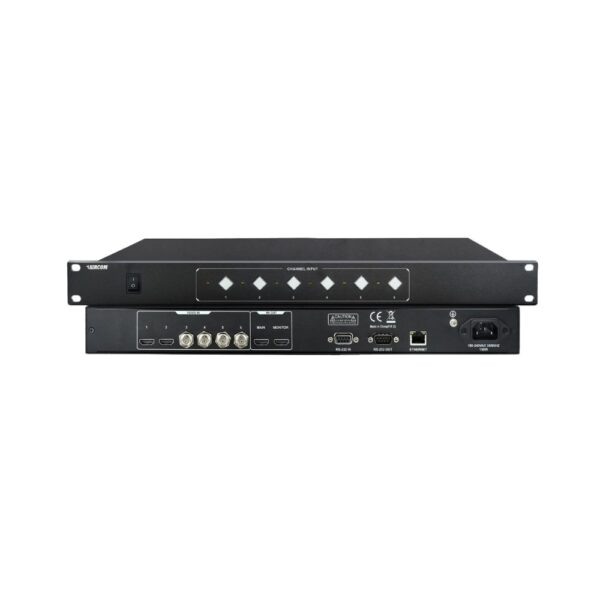

ATC06 Camera Auto-Tracking Controller
- 2 HDMI+ 4 HD/3G SDI input, 1+1 HDMI output
- 6*1+1 seamless scaler switcher, maximum supported 1080P@60Hz
- Seamless switching, no jitter, no blank screen
- Adjustable image freezing function
- Web control function
ATC06 Camera Auto-Tracking Controller
ATC06 It’s an auto-tracking camera controller, that can support both traditional preset position camera tracking as well as new infrared located tracking function.
It has a built-in 6*1 matrix switcher to process different signals and with the function of image freezing. Besides, it will manage several cameras at the same time.
● 2 HDMI+ 4 HD/3G SDI input, 1+1 HDMI output
● 6×1+1 seamless scaler switcher, maximum supported output resolution is 1080P@60Hz
● Seamless switching, no jitter, no blank screen
● Adjustable image freezing function
● Web control function
● Turn on/off the channel number indicators
● 6×1 seamless scaler switcher, maximum supported output resolution is 1080P@60Hz
● Seamless switching, no jitter, no blank screen
● Adjustable image freezing function (freezing time from 1 to 6 seconds, freezing time cannot be less than 0.5 second, or the freezing function would be turned off)
● RS232 and Ethernet port to work with the central controller or CLEACON series or CLASSIC-D series conference main unit for camera auto-tracking function
