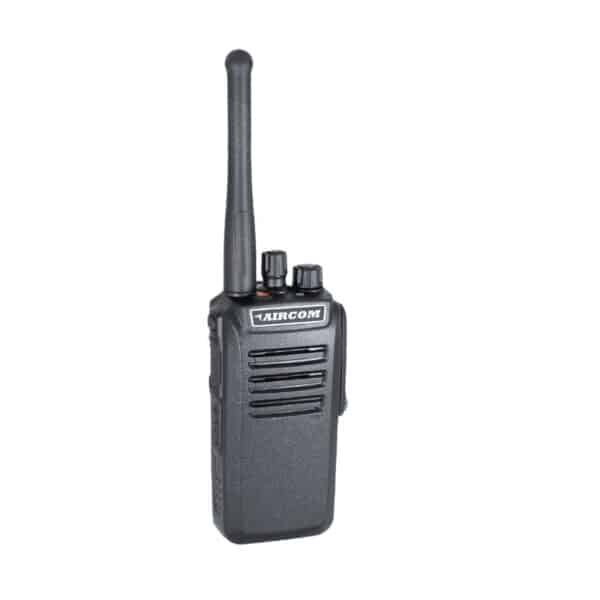

AEX8802 Explosion Proof Two Way Radio

VHF Helical Antenna is compatible with the supplied Walkie-Talkie set.
2500 mAh Li-Ion Battery or Higher
Long lasting battery backup.
Highly explosion proof radio gives extra security.
Nonstop communication without network interruption.
Included belt clip ato attach radio to belt strongly.
Comes in charger base (AC Adaptor)
Radio housing meets IP57 or higher specifications; submersible in 1 meter of water up to 30 minutes.

Technical Specifications

General	Frequency range:136-174 MHz
	Channel Capacity: 16
	Channel spacing:12.5 KHz
	Power Supply: 7.4 V DC ± 10%.
	Frequency Stability (-30° to +60° C): ± 0.5 -2.5 ppm
	Communication Coverage range: Suburban Area: Minimum: 3± km., Flat Open Terrain: Minimum: 5± km.
Transmitter	High Power Output: 5 Watts (VHF)
	Modulation Limiting:± 2.5 kHz @ 12.5 kHz, ± 5 kHz @ 25 kHz
	FM Hum and Noise: 40dB @12.5kHz, 45dB @20/25kHz.
	Audio Distortion: ≈ 3% (Typical)
Receiver	Analogue Sensitivity (at @12 dB SINAD) : 0.16 uV – 0.30 uV
	Digital Sensitivity (5% BER): 0.14uV-0.28 uV
	Adjacent Channel Selectivity: 45-60 dB @ 12.5kHz, 70 dB @ 20/25 kHz
	Inter-modulation: 60-70 dB Spurious Rejection: 70 dB
	Hum and Noise: 45dB @ 20/25kHz, 40dB @ 12.5kHz.
	Rated Audio: 500mW-700 mW
Antenna:	VHF Helical Antenna is compatible with the supplied Walkie-Talkie set.
Battery	2200-2500 mAh Li-Ion Battery or Higher
Carry Solutions	Belt Clip
Battery Charger	Charger Base (AC Adaptor)
Additional Features	Radio housing meets IP57 or higher specifications; submersible in 1 meter of water for up to 30 minutes.
